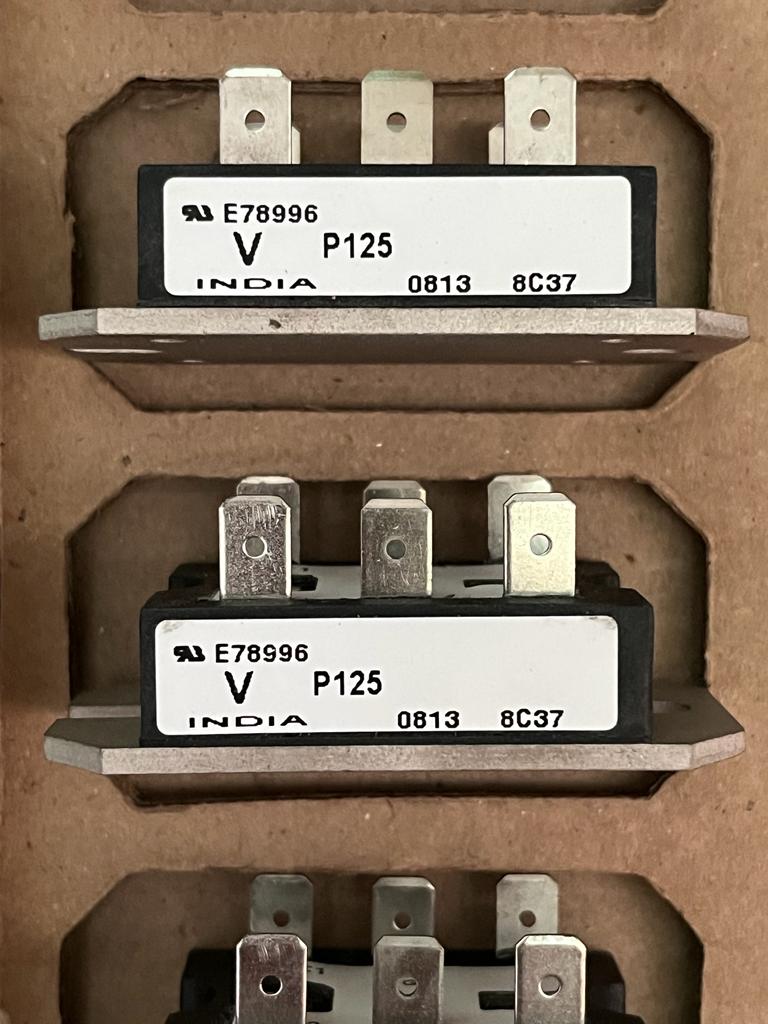

VISHAY P125 SCR Module - Advanced Thyristor Technology for Industrial Applications

Part number: VS-P125

Manufacturer: Vishay

Category: All products

In stock: 797 (Can ship in 24 hours)
€ 1,00

Prodotto aggiunto al carrello.

Vai al carrello

Quantità massima acquistabile per il prodotto raggiunta

Vai al carrello

Spese di spedizione: gratis
Consegna prevista entro Mercoledì 21/01

Per il tuo business da Gamma Components, Distributore di componenti elettronici.

  • Product: VISHAY P125

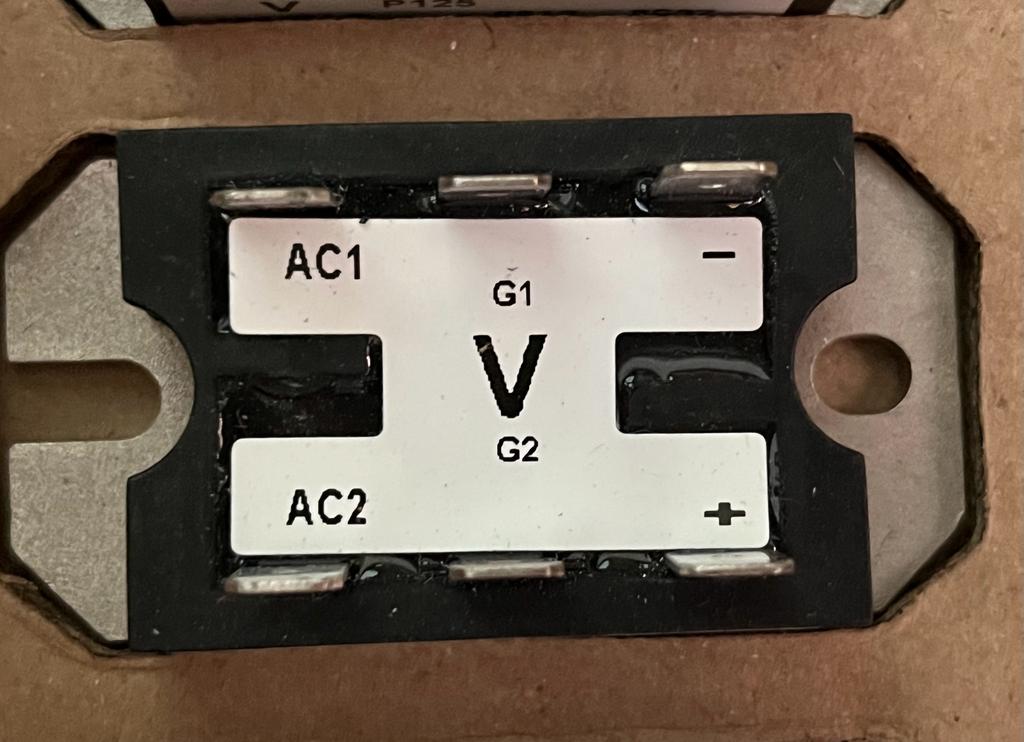

  • Description: SCR Module 1.2 kV Bridge, single phase - SCR/diodes (layout 3) Mount on 8-PACE-PAK chassis.  This Silicon controlled rectifier Module represents a pinnacle in thyristor technology, engineered for high-power applications in industrial environments. This module is specifically designed to handle demanding power control and conversion applications with unparalleled efficiency and reliability.
  • Series: VS-P100
  • DC: 08+
  • RoHS compliant: Yes

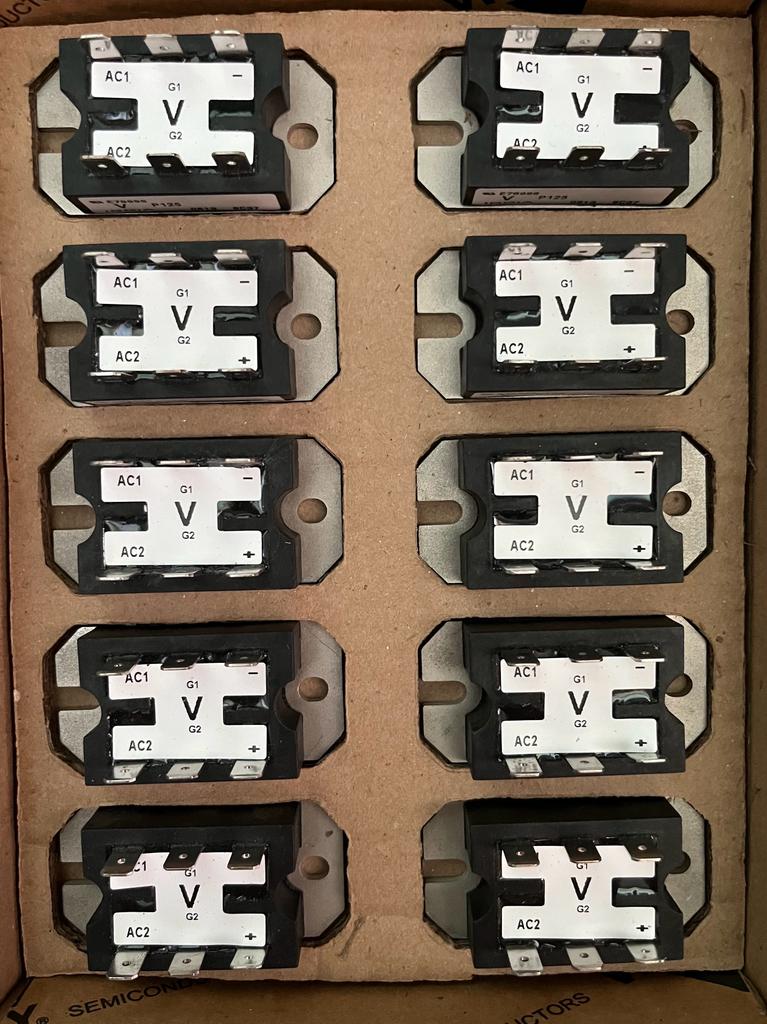

  • Package: Tray
  • HTC 8541300080
  • Datasheet

Key Features and Benefits
Robust Voltage Handling Capable of withstanding high voltage environments, ensuring reliable operation under demanding conditions.
High Current Capability Delivers stable performance with a high RMS current rating.
Rapid Switching Offers fast and efficient switching capabilities, crucial for power control applications.
Thermal Stability Maintains optimal performance across a wide temperature range.
Exceptional Durability:  Engineered for longevity and consistent operation, even in harsh industrial environments.
Eco-Friendly: RoHS compliance assures minimal environmental impact.
Applications
  • Heavy-Duty Motor Controls
  • Power Supplies and Converters
  • Industrial Automation Systems
  • Renewable Energy Inverters
  • High-Power Electronic Circuits
Technical Specifications
Type SCR Module
Manufacturer Vishay
Series VS-P100
Non Repetitive On-State Current: 357A
Rated Repetitive Off-State Voltage VDRM: 1.2 kV
Off-State Leakage Current @ VDRM IDRM: 10 mA
On-State Voltage: 1.35 V
Holding Current Ih Max: 130 mA
Gate Trigger Voltage - Vgt: 2 V
Gate Trigger Current - Igt: 60 mA
Minimum Operating Temperature: -40 °
Maximum Operating Temperature: 125°
Voltage - Core 5.00V
Mounting Style SMD/SMT
Mounting Type Surface Mount
Package / Case PACE-PAK (D-19)
Breakover Current IBO Max: 375 A
Circuit Type Thyristors / Diodes
Current Rating: 25 A
Unit Weight: 58
Date Code 08+
RoHS compliant Yes
Package Tray
HTC 8541300080
