MC14568BCP - Motorola

Part number: MC14568BCP

Manufacturer: Motorola

Category: Logic ICs

In stock: 685 (Can ship in 24 hours)
1,00

Prodotto aggiunto al carrello.

Vai al carrello

Quantità massima acquistabile per il prodotto raggiunta

Vai al carrello

Spese di spedizione: gratis
Consegna prevista entro Giovedì 23/05

Per il tuo business da Gamma Components, Distributore di componenti elettronici.

  • Product: MC14568BCP
  • Description: MC14568BCP - MOTOROLA - DIGITAL PHASE COMPARATOR, 16 Pin
  • Series: MC14568
  • DC: 9744
  • RoHS compliant: No
  • Package: Bag
  • HTC: 8542.39.0000
  • Datasheet

Key Features and Benefits

fThe MC14568B consists of a phase comparator, a divide–by–4, 16, 64 or 100 counter and a programmable divide–by–N 4–bit binary counter (all positive–edge triggered) constructed with MOS P–channel and N–channel enhancement mode devices (complementary MOS) in a monolithic structure.

The MC14568B has been designed for use in conjunction with a programmable divide–by–N counter for frequency synthesizers and phase– locked loop applications requiring low power dissipation and/or high noise immunity.

This device can be used with both counters cascaded and the output of the second counter connected to the phase comparator (CTL high), or used independently of the programmable divide–by–N counter

Technical Specifications

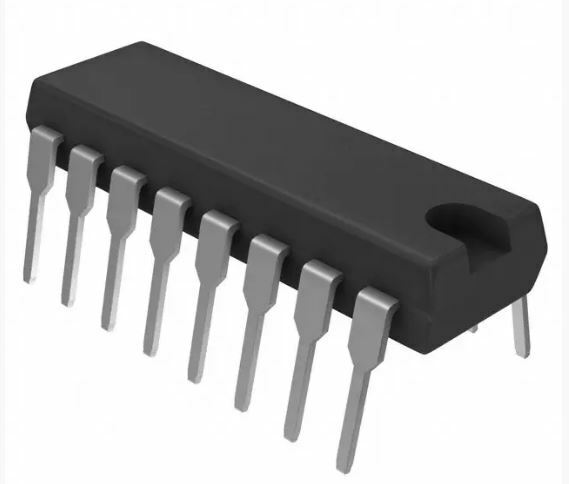

Mfr Package Description PLASTIC, DIP-16
Status Discontinued
Logic IC Type DIVIDE BY N COUNTER
Sub Category Counters
Count Direction UP
Family 4000/14000/40000
fmax-Min 3.0 MHz
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Load/Preset Input YES
Mode of Operation ASYNCHRONOUS
Number of Functions 2
Number of Terminals 16
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Propagation Delay (tpd) 1440.0 ns
Qualification Status Not Qualified
Seated Height-Max 4.44 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 3.0 V
Supply Voltage-Max (Vsup) 18.0 V
Surface Mount NO
Technology CMOS
Temperature Grade MILITARY
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Trigger Type POSITIVE EDGE
Length 19.175 mm
Width 7.62 mm
