FK-MPT0,5/8-3,5 - Phoenix Contact - Series PCB Terminal Block, 8-Contact, 3.5mm Pitch, Through Hole Mount, 1-Row, Spring

Part number: FK-MPT0,5/8-3,5

Manufacturer: PHOENIX Contact

Category: IC

In stock: 4250 (Can ship in 24 hours)
1,00

Prodotto aggiunto al carrello.

Vai al carrello

Quantità massima acquistabile per il prodotto raggiunta

Vai al carrello

Spese di spedizione: gratis
Consegna prevista entro Lunedì 15/04

Per il tuo business da Gamma Components, Distributore di componenti elettronici.

  • Product: FK-MPT0,5/8-3,5
  • Description: PCB Terminal Block, 8-Contact, 3.5mm Pitch
  • Series: FK-MPT
  • DC: 10+
  • RoHS compliant: Yes
  • Package: Box
  • HTC: 8536.69.4040
  • Datasheet
Approvals and Compliance
  • cULus Recognized, Approval ID: E60425-19991118
  • VDE Zeichengenehmigung, Approval ID: 40055523
  • China RoHS: Environmentally friendly use period: unlimited = EFUP-e, No hazardous substances above threshold values
Technical Specifications
Type Printed Circuit Board Terminal Block
Product Line COMBICON Terminals XS
Product Type Printed Circuit Terminal
Product Family FK-MPT 0,5/..-H
Number of Poles 8
Pitch 3.5 mm
Number of Connections 16
Number of Rows 1
Number of Potentials 8
Pin Layout Linear Pinning
Solder Pins per Potential 1
Rated Current IN 4 A
Rated Voltage UN 250 V
Pollution Degree 3
Rated Impulse Voltage (III/3) 2.5 kV
Rated Impulse Voltage (III/2) 2.5 kV
Rated Impulse Voltage (II/2) 2.5 kV
Conductor Connection Push-in Spring Connection
Solid Conductor Cross-Section 0.12 mm² ... 0.5 mm²
AWG Conductor Range 26 ... 20
Stripping Length 6.5 mm
Mounting Type Wave Soldering
Contact Material Steel/Copper
Contact Surface Finish Electrolytic Tin Plating
Insulator Material PBT
Insulator Color Green (6021)
Insulator Material Group IIIa
Comparative Tracking Index (CTI) 225
UL 94 Flammability Class V0
Actuator Material Color Orange (2003)

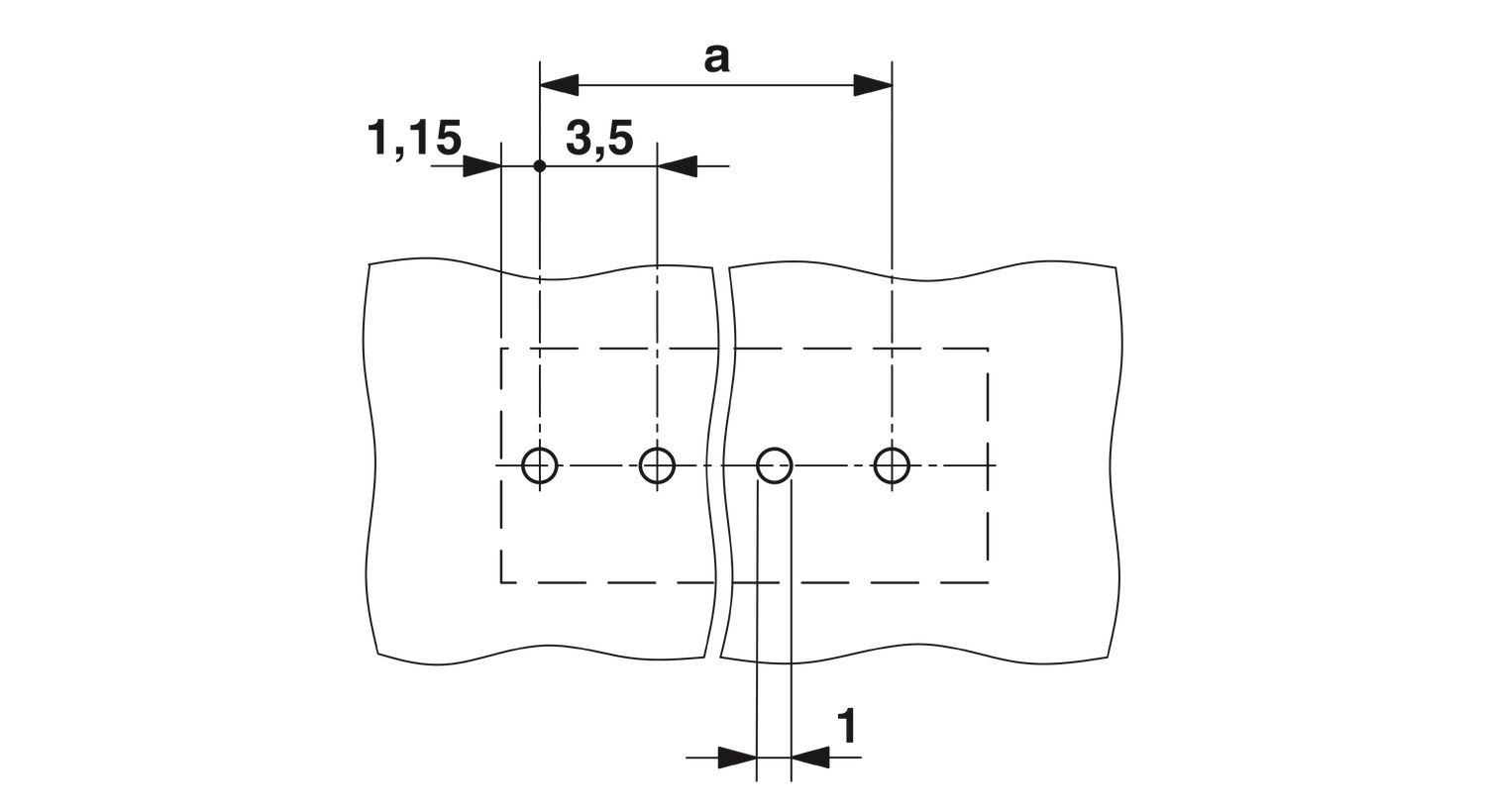

Dimensions Width: 28.5 mm, Height: 12.5 mm, Length: 9.5 mm, Installation Height: 8.5 mm
Pin Dimensions Solder Pin Length: 4 mm, Pin Diameter: 1 mm
Environmental Conditions Operating Temp: -40 °C ... 100 °C, Storage/Transport Temp: -40 °C ... 70 °C, Relative Humidity: 30% ... 70%
