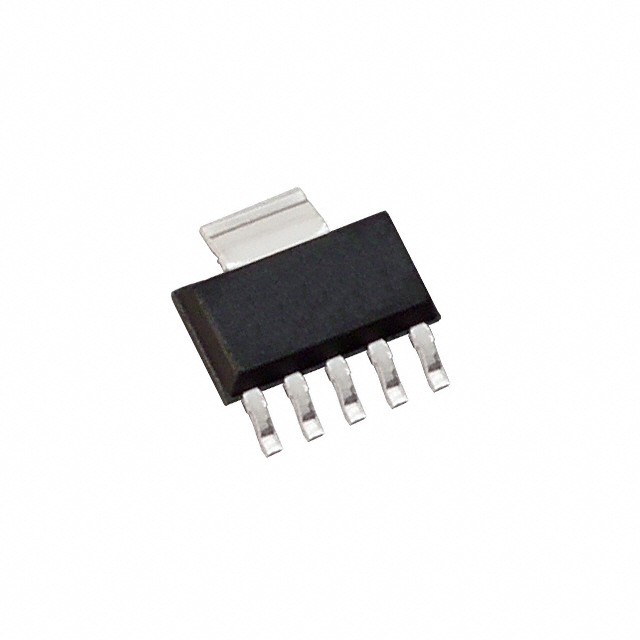

REG104GA-A/2K5G4 - Texas Instruments - IC REG LINEAR POS ADJ 1A SOT223

Part number: REG104GA-A/2K5G4

Manufacturer: Texas Instruments

Category: IC

In stock: 4715 (Can ship in 24 hours)
1,00

Prodotto aggiunto al carrello.

Vai al carrello

Quantità massima acquistabile per il prodotto raggiunta

Vai al carrello

Spese di spedizione: gratis
Consegna prevista entro Venerdì 21/06

Per il tuo business da Gamma Components, Distributore di componenti elettronici.


  • Product: REG104GA-A/2K5G4
  • Description: LDO Regulator Pos 1.295V to 5.5V 1A 6-Pin(5+Tab) SOT-223
  • DC: 18+
  • RoHS compliant: Yes
  • Package: T&R
  • HTC: 8542.39.0001
  • Datasheet

Key Features and Benefits
  • Versatile Output Voltage Range: Adjustable from 1.295 V to 5.5 V, accommodating a wide range of applications.
  • High Output Current: Capable of delivering up to 1 A, suitable for demanding loads.
  • Low Dropout Voltage: Ensures efficient operation with a minimal voltage difference between input and output.
  • Wide Input Voltage Range: Accepts input from 2.1 V to 15 V, offering flexibility in various power environments.
  • Thermal and Overcurrent Protection: Enhances safety and reliability of the device under different conditions.
  • Small Form Factor: The compact SOT-223-6 package is ideal for space-constrained applications.
Technical Specifications
Manufacturer Texas Instruments
Product Category LDO Voltage Regulators
RoHS Details
Mounting Style SMD/SMT
Package/Case SOT-223-6
Output Voltage 1.295 V to 5.5 V
Output Current 1 A
Number of Outputs 1 Output
Polarity Positive
Input Voltage, Min 2.1 V
Input Voltage, Max 15 V
Output Type Adjustable
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Dropout Voltage 230 mV
Series REG104-A
Packaging Reel, Cut Tape, MouseReel
Brand Texas Instruments
Dropout Voltage - Max 25 mV at 10 mA
Height 1.6 mm
Ib - Input Bias Current 600 uA
Length 6.5 mm
Moisture Sensitive Yes
Product Type LDO Voltage Regulators
Reference Voltage 1.295 V
Subcategory PMIC - Power Management ICs
Voltage Regulation Accuracy 2 %
Width 3.5 mm
Unit Weight 120 mg
