LGX2W221MELC25 - Nichicon

Part number: LGX2W221MELC25

Manufacturer: Nichicon

In stock: 4600 (Can ship in 24 hours)

€ 1,00

Spese di spedizione: gratis
Consegna prevista entro Mercoledì 17/12

Per il tuo business da Gamma Components, Distributore di componenti elettronici.

Product: LGX2W221MELC25

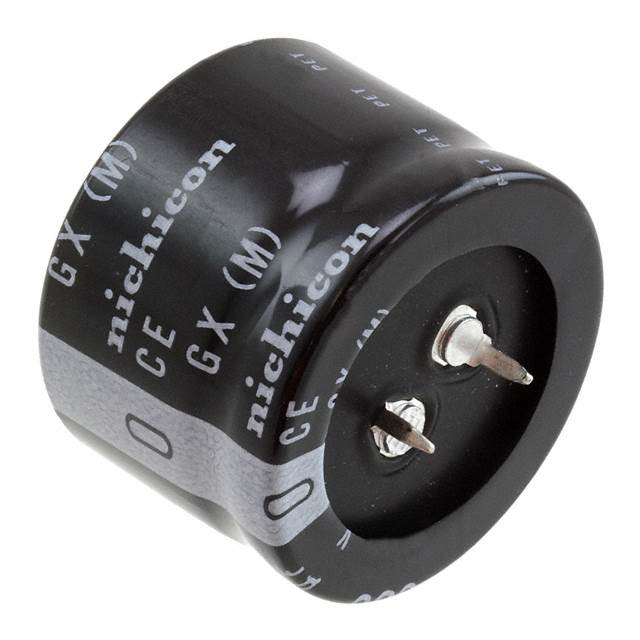

Description: 220 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C
DC: 15+
RoHS compliant: Yes

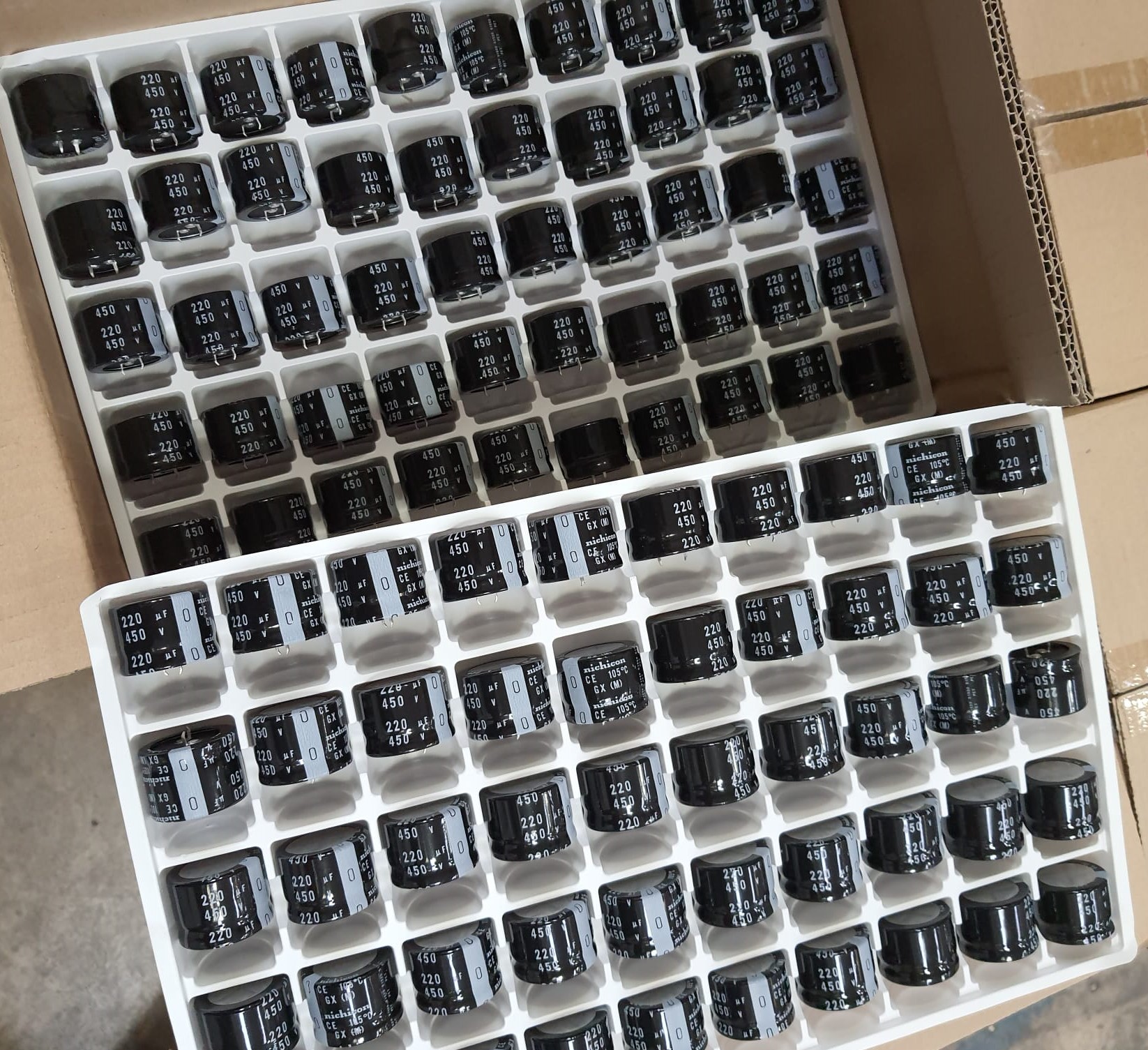

Package: Box(450 pieces)
HTC: 8532.22.0040
Datasheet

Key Features and Benefits

High Capacitance: 220 μF for substantial energy storage, ideal for various applications.
High Voltage Rating: Rated at 450 VDC, suitable for high-voltage applications.
Extended Temperature Range: Operates effectively from -25°C to +105°C, ensuring reliability in diverse environments.
Long Life Span: 5000-hour life ensures durability and reduces the need for frequent replacements.
High Ripple Current: Can handle a ripple current of 1.1 A, enhancing its performance in power circuits.
Snap-In Termination: Provides easy and secure mounting, suitable for quick assembly processes.

Technical Specifications

Manufacturer	Nichicon
Product Category	Aluminium Electrolytic Capacitors - Snap In
RoHS	Details
Product	Aluminum Electrolytic Capacitors
Termination Style	Snap In
Capacitance	220 uF
Voltage Rating DC	450 VDC
Tolerance	20 %
ESR	-
Minimum Operating Temperature	- 25 C
Maximum Operating Temperature	+ 105 C
Number of Pins	2 Pin
Diameter	35 mm
Length	25 mm
Lead Spacing	10 mm
Life	5000 Hour
Ripple Current	1.1 A
Series	LGX
Packaging	Bulk
Brand	Nichicon
Dissipation Factor DF	0.2
Leakage Current	940 uA
Product Type	Electrolytic Capacitors
Subcategory	Capacitors
Unit Weight	36,700 g
