410-251 - Digilent - Development Boards

Part number: LGX2W221MELC25

Manufacturer: Digilent

In stock: 183 (Can ship in 24 hours)

€ 1,00

Spese di spedizione: gratis
Consegna prevista entro Giovedì 12/03

Per il tuo business da Gamma Components, Distributore di componenti elettronici.

Key Features and Benefits

Small, complete, all-in-one JTAG programming/debugging solution for Xilinx FPGAs.
Compatible with Xilinx tools including iMPACT™, ChipScope™, and EDK.
High speed, 24mA, three-state buffers allowing signal voltages from 1.8V to 5V and bus speeds up to 30MBit/sec.
Separate Vref supply to drive JTAG signals, supporting any voltage between 1.8V and 5V.
Three general-purpose IO pins (GPIO0 – GPIO2) and support for interfacing IEEE 1149.7-2009 JTAG targets in both 2 and 4-wire modes.
Single 3.3V supply.

Technical Specifications

Product Category	Programmable Logic IC Development Tools
RoHS	Details
Product	Programmers
Type	FPGA
Tool Is For Evaluation Of	Xilinx FPGA
Brand	Digilent

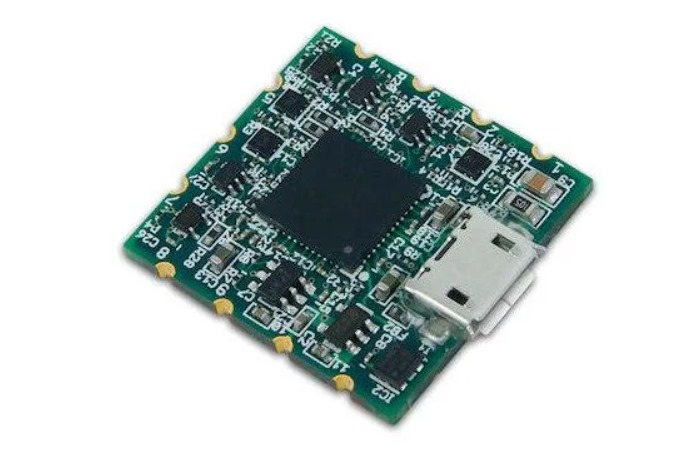

Description/Function	A compact, complete and fully self-contained surface-mount programming module for Xilinx field-programmable gate arrays
For Use With	Xilinx FPGA
Interface Type	USB
Moisture Sensitive	Yes
Operating Supply Voltage	3.3 V
Packaging	Bulk
Product Type	Programmable Logic IC Development Tools
Subcategory	Development Tools
Unit Weight	4,300 g
