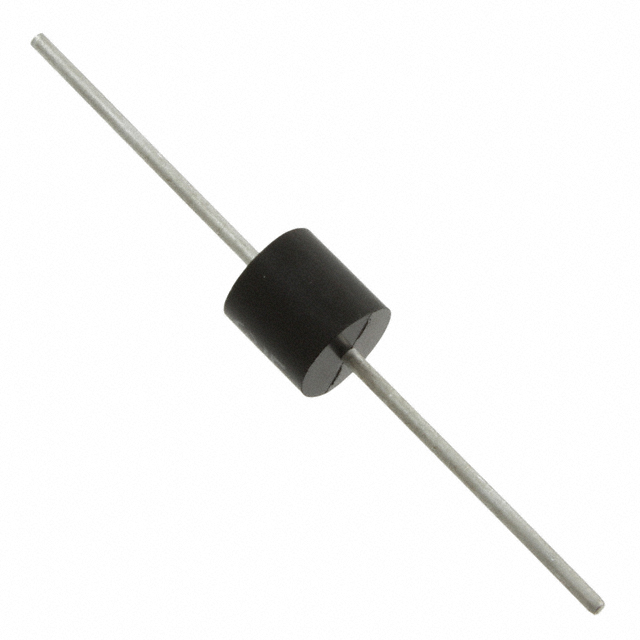

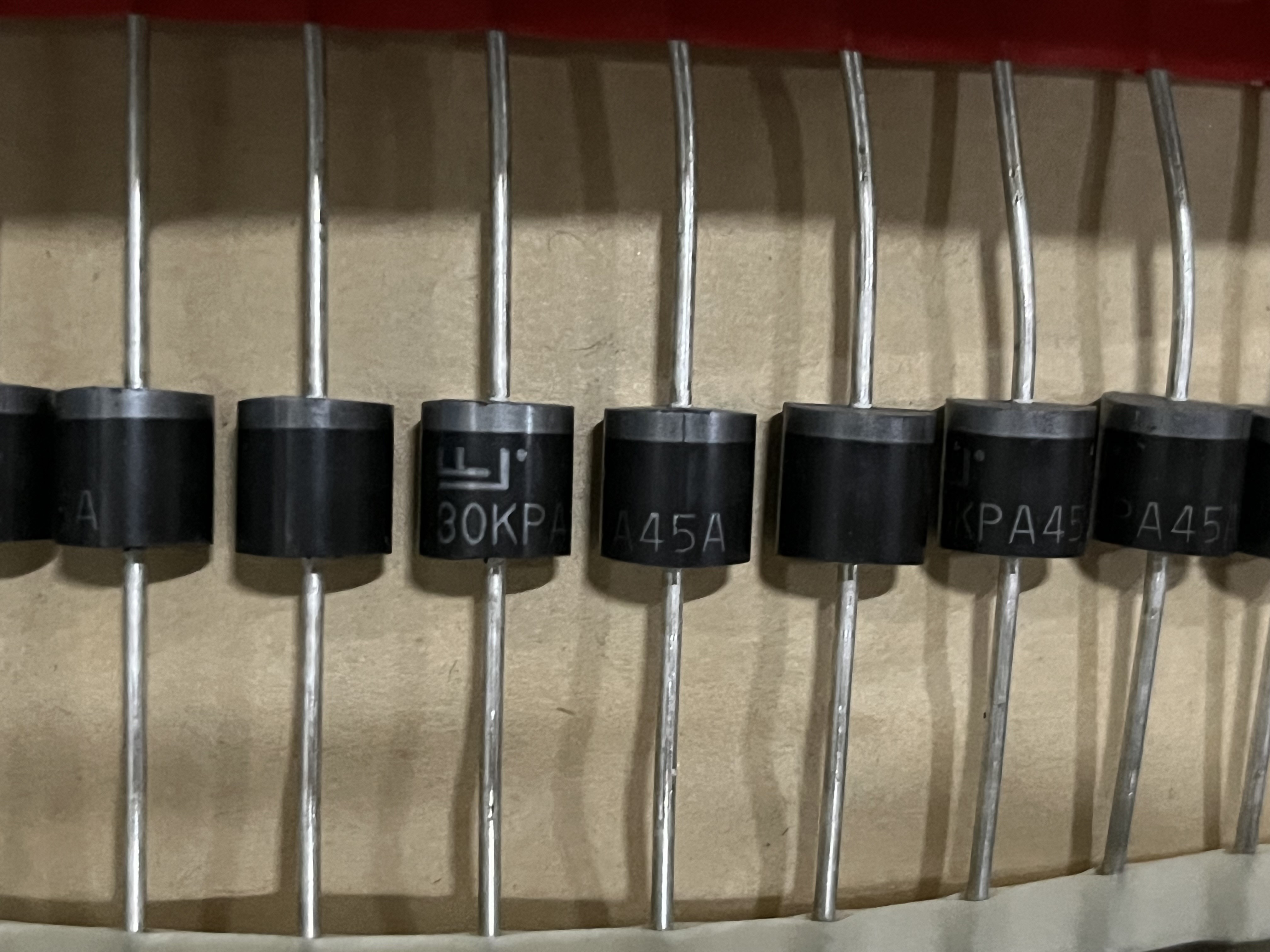

30KPA45A - TVS diode - ESD Suppressor

Part number: 30KPA45A

Manufacturer: Littelfuse

Category: Diode

In stock: 1600 (Can ship in 24 hours)
1,00

Prodotto aggiunto al carrello.

Vai al carrello

Quantità massima acquistabile per il prodotto raggiunta

Vai al carrello

Spese di spedizione: gratis
Consegna prevista entro Lunedì 22/07

Per il tuo business da Gamma Components, Distributore di componenti elettronici.



  • Description: TVS Diode, ESD Suppressor. The 30KPA45A is a high-performance Transient Voltage Suppressor (TVS) diode from Littelfuse, specifically designed for industrial applications requiring robust surge protection. This component is engineered to shield sensitive electronic systems from damaging voltage spikes and transients, ensuring reliability and durability in challenging environments.
  • Series: 30KPA
  • Technical details:16-Bit Size57.14MHz, PQFP100
  • DC: 10+
  • RoHS compliant: Yes
  • Package: 800 (pieces)
  • HTC 8541.10.0080
  • Datasheet


The 30KPA45A is a high-performance Transient Voltage Suppressor (TVS) diode from Littelfuse, specifically designed for industrial applications requiring robust surge protection. This component is engineered to shield sensitive electronic systems from damaging voltage spikes and transients, ensuring reliability and durability in challenging environments.


Key Features and Benefits
High Surge Protection With a peak pulse power dissipation of 30 kW, the 30KPA45A offers exceptional protection against severe voltage transients.
Fast Response Time Designed to react instantly to transient voltages, ensuring immediate protection for your systems.
Durable construction Optimized for longevity and reliability, even in extreme industrial conditions.
Enviromental compliance Meets RoHS and REACH standards, reinforcing our commitment to environmental sustainability.
Applications
  • Power supply units
  • Motor control systems
  • Telecommunication Infrastructure
  • Industrial
Technical Specifications
Type TVS Diode
Peak pulse power dissipation 30,000 Watts (30 kW) at 10/1000 μs
Standoff Voltage (Vrwm): 45 volts
Breakdown Voltage (Vbr):  50.0 to 55.0 Volts
Maximum Clamping Voltage (Vc):  73.3 Volts
Peak Pulse Current (Ippm) 410 amps
Polarity Unidirectional
 Package/Case P600
Operating Temperature Range : -55°C to +150°C
Mounting Type: Through Hole 4kBdoes
Number of channels 1
Working voltage 45 v
Termination style Axial
Clamping Voltage 77.4 V
Breakdown Voltage 50.3 V
Package/Case P600-2
Ipp - Peak Pulse Current 391.5 A
Pppm - Peak Pulse Power Dissipation: 30 kW
Cd - Diode Capacitance: -
Vesd - Voltage ESD Contact: 30 kV
Vesd - Voltage ESD Air Gap: 30 kV
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C
Pd - Power Dissipation: 8 W
Unit Weight: 2500 g
Date Code 10+
RoHS compliant Yes

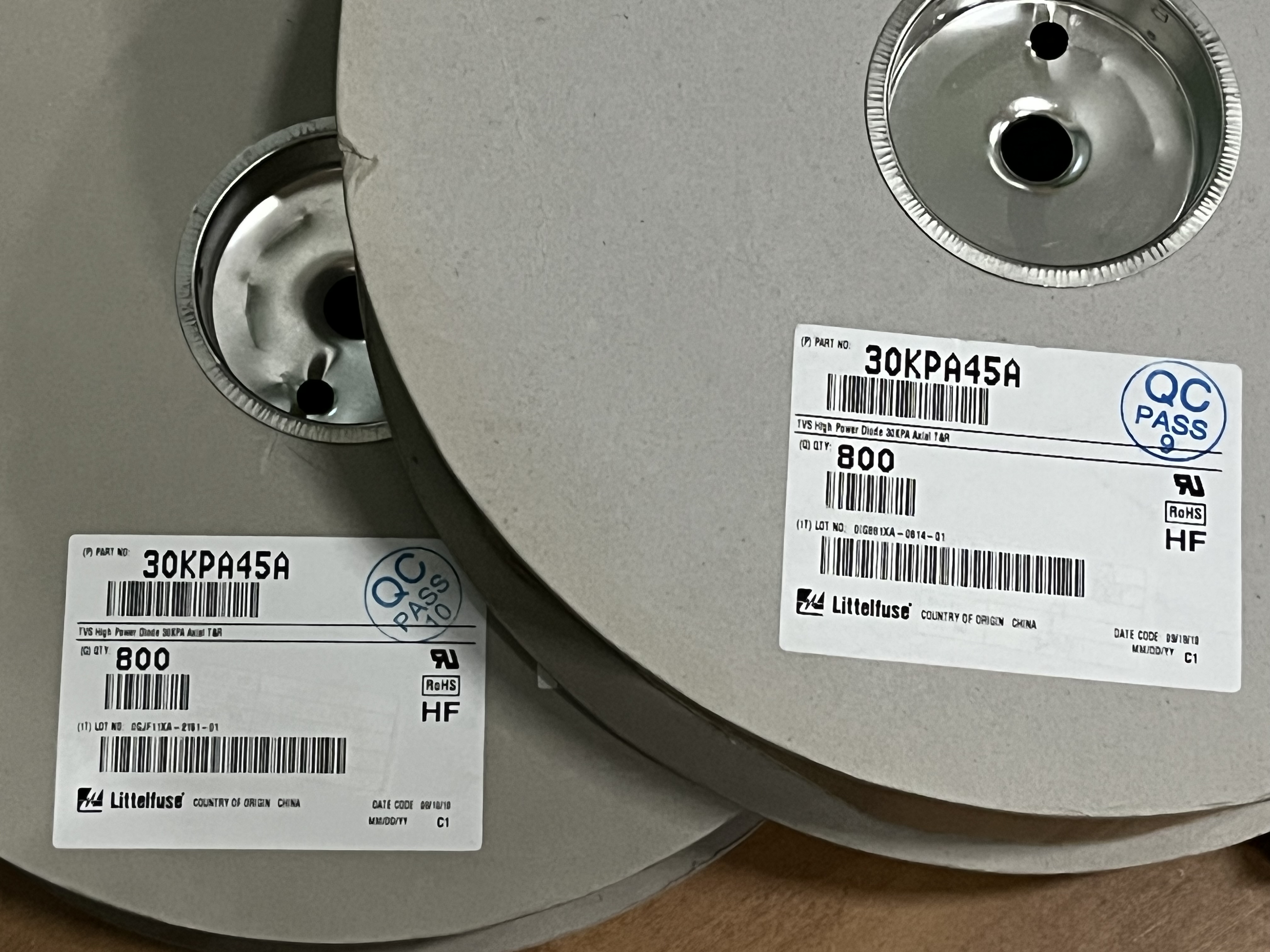

Package Reel (800 pieces)
HTC 8542.31.0001
